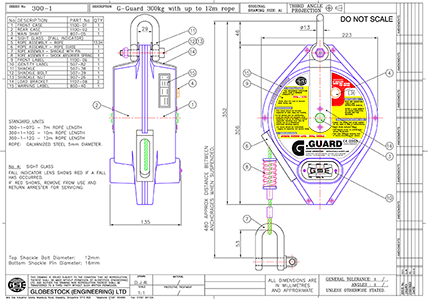

G-Guard 3107G Fall Arrester

The Load Halt G-GUARD 3107G fall arrester offers a unique ability to automatically stop the fall of heavy and sensitive equipment. They offer protection to equipment and workers below if the primary lift hoist or suspension support fails.

The G-GUARD 300 series will arrest a load up to 660 pounds. Units are available with 23 to 49 feet of retractable steel cable. Unit carries the CE mark of approval.

Safeguard your vulnerable equipment, and give your employees valuable protection against a catastrophic accident with a trusted Load Halt fall arrester.

• The G-Guard cable should run directly to the load and should not pass over any other cable.
• The G-Guard cable should not become slack. The anchor point must be above the G-Guard. The anchor point should be of such construction that it can withstand a shock load of 1,500 kg, (3306 lbs.).
• Allow 0.6 to 1.0 meters (2-3 feet) distance below the load for the G-Guard to arrest the load.

• The G-Guard should be placed as near as possible to the main supporting agent so as to reduce swing in the event of a failure of the main supporting agent.
• The G-Guard cable should run parallel to the rope of the main supporting agent.
• If a load is centrally supported then multiple G-Guards of a maximum working load may be used.
